Introduction
1. Name:

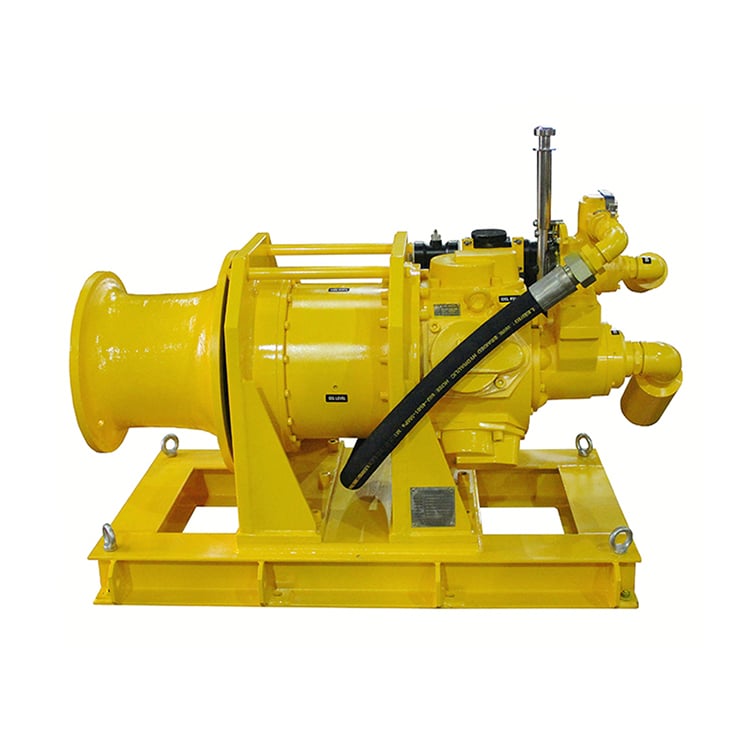

Horizontal Air-Powered Winch
2. Overview:
The air-powered winch is powered by compressed air and driven by a piston-type air motor. It is transmitted through a planetary gear reducer to drive the drum to rotate, achieving the required operation. The winch is equipped with an automatic disc brake in case of air cut-off and a local manual operation valve to ensure safety and ease of operation. This product is suitable for lifting heavy objects on ship platforms and mining site workshops.

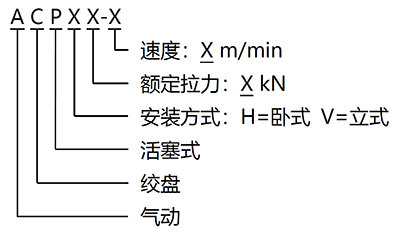

3. Model:
ACPH60-9
4. Parameters
| Name | Parameter | Unit | |
|---|---|---|---|
| Working pressure | 0.62 ~ 1.0 | MPa | |
| Rated pulling force | 60 | kN | |
| Steel wire rope diameter | 16‑22 | mm | |
| Traction speed | 0‑9 | m/min | |
| Pneumatic motor | Rated power | 20 | kW |
| Number of cylinders | 5 | mm | |
| Drum | Diameter | 330 | mm |
| Overall dimension | Length | 1450 | mm |
| Width | 720 | mm | |
| Height | 980 | mm | |
| Total weight | 1000 | kg | |
