- Introduction
Introduction

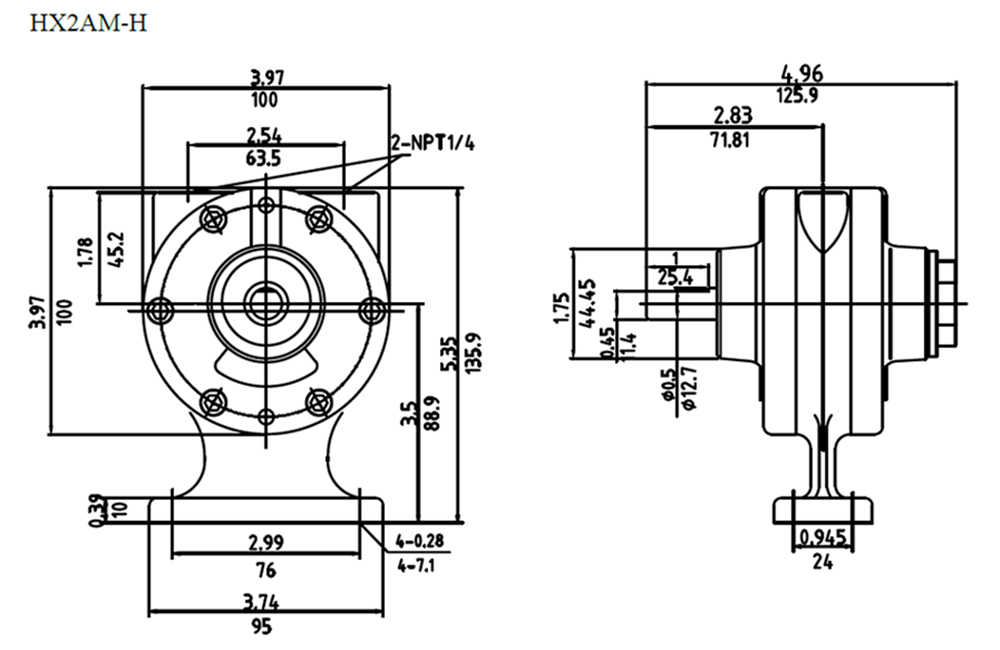

| Model | HX2AM-H |
| Power | 0.68kW |
| Speed | 3000rpm |
| Torque | 2.2N·m |
| Free Speed | 6000rpm |
| Direction of Rotation | Reversible |
| Air Pressure | 0.69MPa |
| Air Consumption | 825L/min |
| Port Size | Air Inlet: NPT 1/4" Air Outlet: NPT 1/4" |
| Hose Diameter | O.D.=10mm | I.D.=6.5mm |
| Shaft Diameter | 12.7mm |
| Housing Material | Cast Iron |
| Mounting Type | Foot Mounting |
| Weight | 2.6kg |
