Introduction
1. Name:
Horizontal Air-Powered Winch
2. Overview:
The ACPH10-15 air-powered winch is powered by compressed air and driven by a piston-type air motor. It is transmitted through a gear reducer to drive the drum to rotate, achieving the required operation. The winch is equipped with an automatic belt brake in case of air cut-off and local manual operation handles to ensure safety and ease of operation. This product is suitable for lifting heavy objects on ship platforms and mining site workshops.

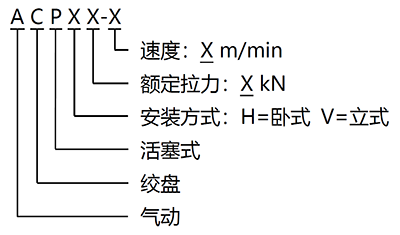

3. Model:
ACPH10-15
4. Parameters
| Name | Parameter | Unit | |
|---|---|---|---|
| Working pressure | 0.62 ~ 0.8 | MPa | |
| Rated pulling force | 10 | kN | |
| Traction speed | 0‑15 | m/min | |
| Pneumatic motor | Rated power | 4.5 | kW |
| Cylinder diameter | 65 | mm | |
| Number of cylinders | 5 | mm | |
| Drum | Drum inner diameter | 230 | mm |
| Drum inner side width | 340 | mm | |
| Flange diameter | 320 | mm | |
| Overall dimension | Length | 1018 | mm |
| Width | 547 | mm | |
| Height | 684 | mm | |
| Total weight | 480 | kg | |

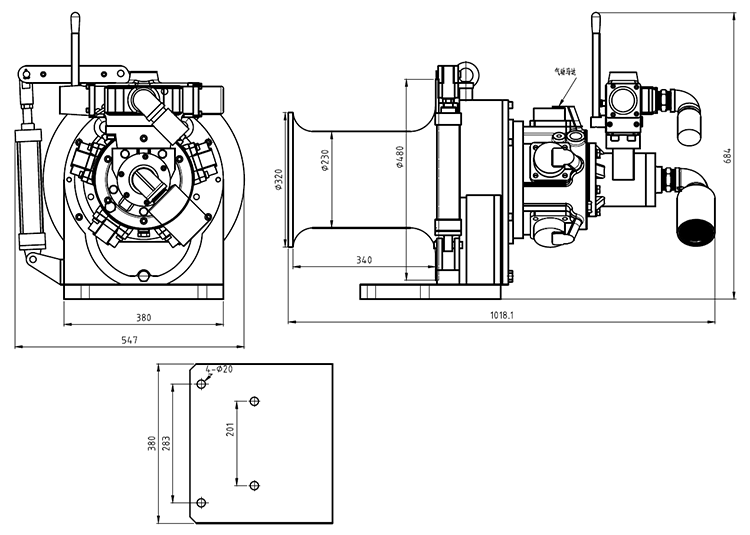

5. Dimensions
