Introduction
1. Name:
Vertical Air-Powered Winch
2. Overview:
The ACPV10-30 air-powered winch is powered by compressed air and driven by a piston-type air motor. It is transmitted through a planetary gear reducer to drive the drum to rotate, achieving the required operation. The winch is equipped with an automatic disc brake in case of air cut-off and a local manual operation valve to ensure safety and ease of operation. This product is suitable for lifting heavy objects on ship platforms and mining site workshops.
3. Model:

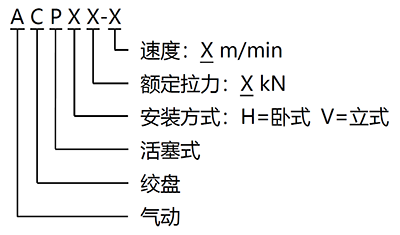

ACPV10-30
4. Parameters
| Name | Parameter | Unit | |
|---|---|---|---|
| Working pressure | 0.62 ~ 0.8 | MPa | |
| Rated pulling force | 10 | kN | |
| Traction speed | 0‑30 | m/min | |
| Pneumatic motor | Rated power | 7 | kW |
| Cylinder diameter | 80 | mm | |
| Number of cylinders | 5 | mm | |
| Piston stroke | 64 | mm | |
| Drum | Diameter | 350 | mm |
| Width | / | mm | |
| Flange diameter | / | mm | |
| Overall dimension | Length | 1024 | mm |
| Width | 510 | mm | |
| Height | 1366 | mm | |
| Total weight | 485 | kg | |

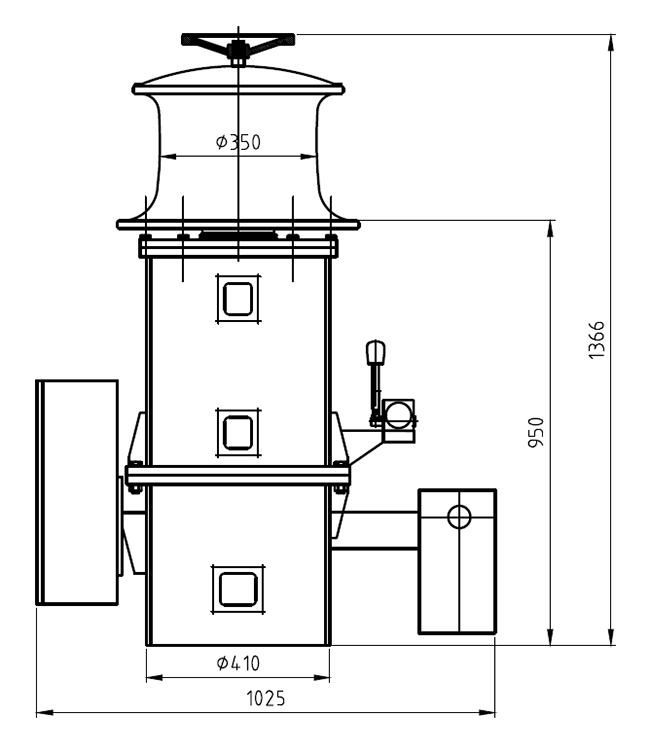

5. Dimensions
